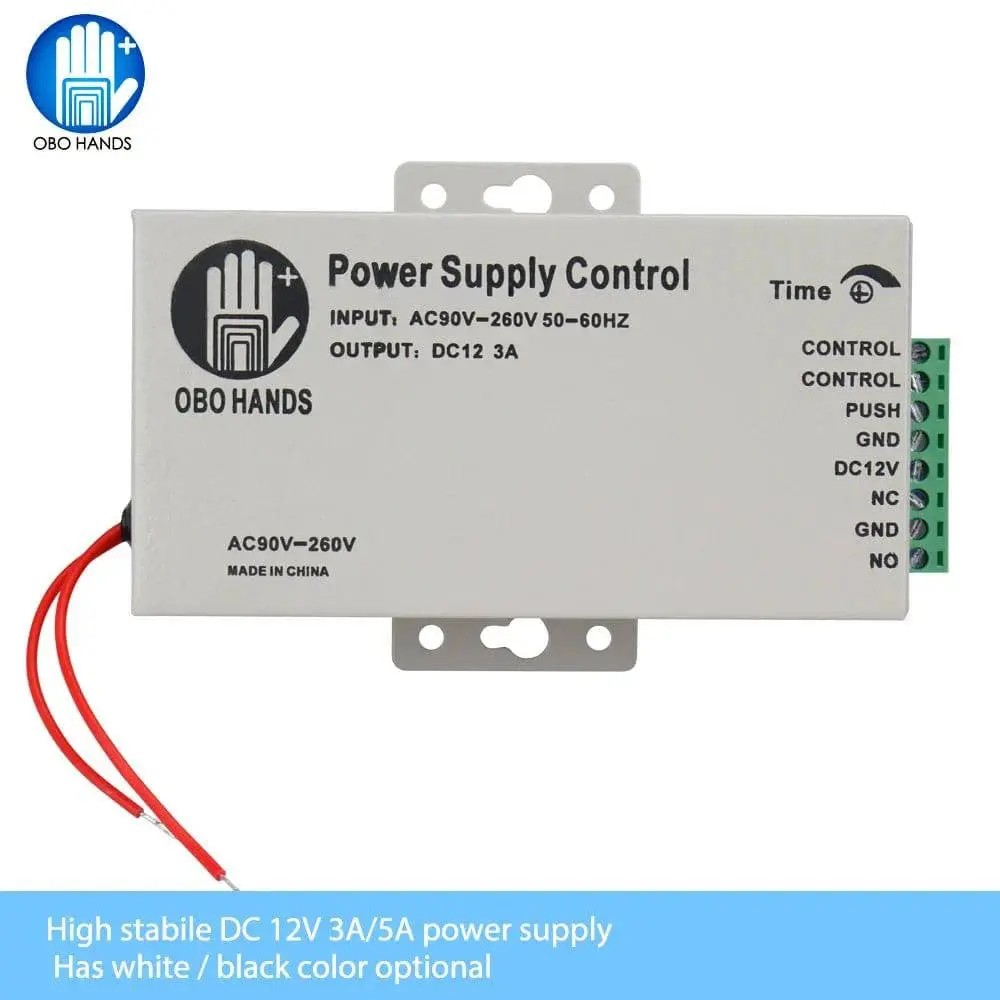

OBO HANDS 12VDC Access Control Power Supply Switch Time Delay AdjustableOutput for 2 Electric Lock
OBO HANDS 12VDC Access Control Power Supply Switch 3A/5A Time Delay Adjustable AC90V-260V Input NO/NC Output for 2 Electric Lock
SPECIFICATIONS
Type: Access Control Power Supply
Out Voltage: DC12V
Color: White/ black optional
Application: office,school,home,hotel,shopping mall
Material: Metal
Suitable for lock: All kinds of the locks
Input voltage: AC90-260V
Working frequency: 50-60Hz
Time Delay: 0-30 seconds adjustable
Working Ampere: 3A/5A optional
Brand Name: OBO HANDS
Model Number: K80 power supply
Security Mode: Fail Safe
Origin: Mainland China
Certification: CE
Direction: None
Choice: yes
semi_Choice: yes
DC12V 3A/ 5A Access Control Power Supply
very suitable for door access control system and video intercom system
Product Features
1. This DC12V power supply with 3A and 5A, white and black color optional.
2. With Control, Push, GND, DC12V, NC, NO port, can be work with all kinds of electrick locks.
3. With 0-30 seconds time delay adjustable.
4. Working input valtoge of AC90-260V, more freedom.
5. Made of metal, high quality.
6. Looks very pretty
7. Less Power consumption, and high power. Small switching transistor
Kindly note: 3A can control 1 electric lock, 5A can control 2 electric locks.
Product Specifications
|
|
Input Voltage: AC90V-AC260V 50-60HZ Output Voltage: DC12V
Momentary Current: 3A/5A Persistent Current: 3.5A Operating Temperature:﹣20℃~﹢60℃ Operating Humidity: ≦90% Time Delay: 0~30S Remote control function: Yes Dimension: 138X67X37mm( L/W/H ) |
Product Analysis
Product Details
|
The shell made of metal, sturdy and durable. There are many holes on both sides, easy to install. |
|
|
|
Using a smart circuit board, anti-interference |
|
With 0-30 seconds time delay. |
|
|
|
High frequency of copper transformer. Can control 2 electriclocks, 1 acccess controller, 1 remote control, 1 exit button, 1 door bell, etc. ( The 3A model only can control 1 electric lock, not 2 locks) |
Real Pictures of Product
Wiring Diagram
( please note that the access controller, locks, exit button is not including in the package, need to buy additional. Thanks)
